Jabiru 5100 8 cylinder 170 bhp




  • 4 Stroke
  • 8 Cylinder horizontally opposed
  • 1 central Camshaft with Push Rods
  • Over head Valves (OHV)
  • Ram air cooled
  • Wet Sump lubrication
  • Direct Propeller drive
  • Dual independent transistorised Magneto Ignition
  • Integrated AC Generator
  • Electric Starter
  • Mechanical Fuel Pump
  • Naturally aspirated - 2 pressure compensating Carburettors
  • 10 Bearing Crankshaft
Engine Specifications:
  • Displacement.........................5100cc (310in)
  • Bore.....................................as above
  • Stroke..................................85mm
  • Rotation of Prop Shaft..............clockwise - pilot's view - tractor
  • Ramp Weight..........................120kg (264lb) inc. Exhaust, Carb., Starter Motor, Alternator & ignition systems
  • Power rating..........................170hp @ 2,700rpm, 180hp @ 3000 rpm
  • Fuel consumption...................30-31 l/hr @ 75% power (6.8 imp gph) (On an RV6 with Sensenich propeller @ 2600RPM)
  • Fuel......................................AVGAS 100/130
  • Oil.........................................Aeroshell W100 or equivalent
  • Spark Plugs............................NGK D9EA - Automotive

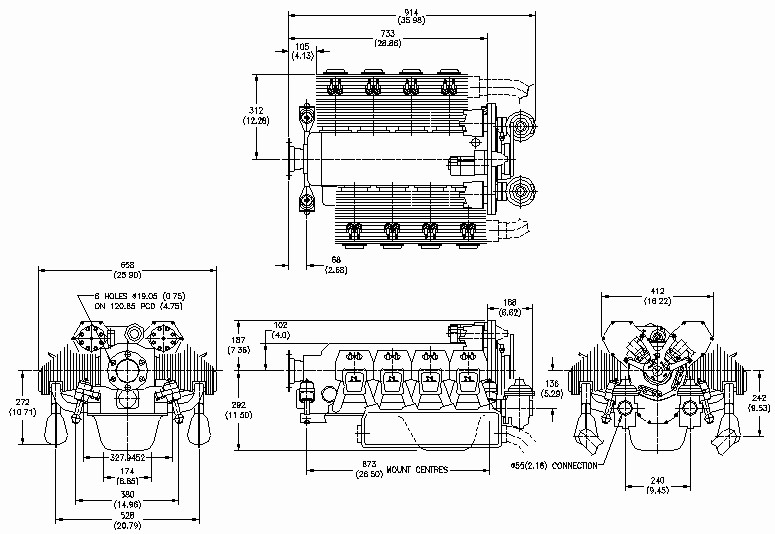

Drawing with dimensions (click on drawing to enlarge)

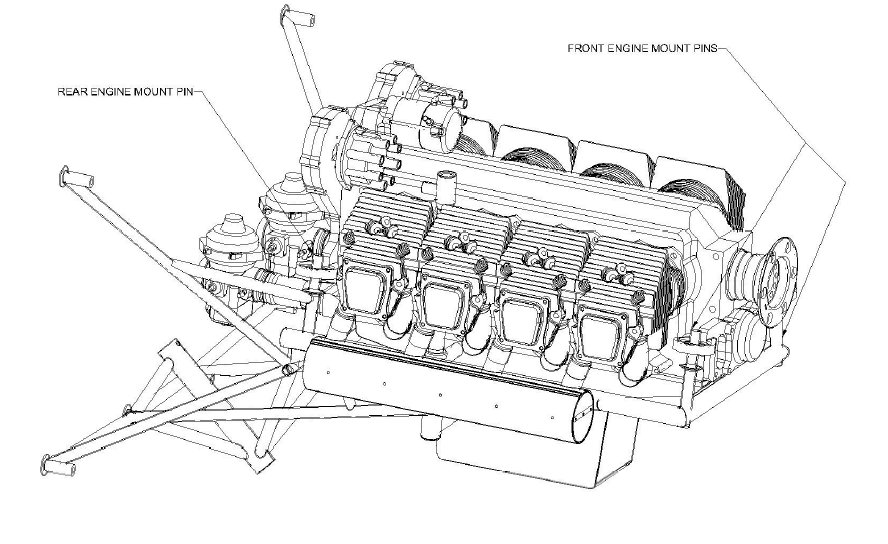

isometric drawing (click on drawing to enlarge)
