Jabiru
3300 6 cylinder 120 bhp
- 4 Stroke
- 6 Cylinder horizontally opposed
- 1 central Camshaft with Push Rods
- Over head Valves (OHV)
- Ram air cooled
- Wet Sump lubrication
- Direct Propeller drive
- Dual independent transistorised Magneto
Ignition
- Integrated AC Generator 15amp
- Electric Starter
- Mechanical Fuel Pump
- Naturally aspirated - 1 pressure
compensating Carburettor
- 8 Bearing Crankshaft
Engine
Specifications:
-
Displacement..........................3300cc (201in)
- Bore & stroke..........................as
above
- Rotation of Prop
Shaft..............clockwise - pilot's view - tractor
- Ramp Weight..........................81kg
(178lb) inc. Exhaust, Carburettor, Starter Motor, Alternator & ignition
systems.
- Power
rating..........................120Bhp intermittent @ 3,300rpm
- Fuel consumption...................21 l/hr
(4.6 imp gph) @ 75% power (approx)
-
Fuel......................................AVGAS 100LL / Mogas 95 RON (with
inspector sign-off)
- Oil........................................Aeroshell
W100 or 15W50 multigrade aviation oil.
- Spark Plugs...........................NGK
D9EA - Automotive

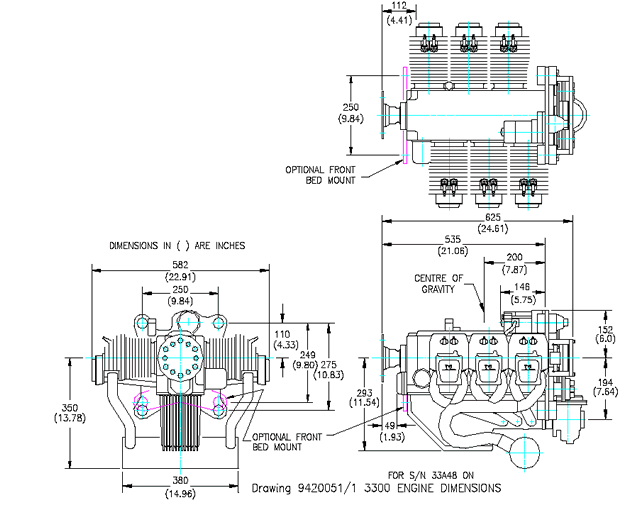

Drawing with dimensions (click on drawing to enlarge)
