Jabiru
2200 4 cylinder 85 bhp
- 4 Stroke
- 4 Cylinder horizontally opposed
- 1 central Camshaft with Push rods
- Overhead valves (OHV)
- Ram-air cooled
- Wet Sump lubrication
- Direct propeller drive
- Dual independent transistorised magneto
ignition
- Integrated AC Generator
- Electric Starter
- Mechanical Fuel Pump
- Naturally aspirated - 1 pressure
compensating carburettor
- 6 bearing Crankshaft
Engine
Specifications:
- Displacement........................2200cc
-
Bore.....................................97.5mm
-
Stroke..................................74mm
- Compression ratio..................8.0:1
- Rotation of Prop Shaft...........clockwise
- pilot's view - tractor
- Ramp weight........................60kg
(132lb) inc. Exhaust, Carburettor, Starter Motor, Alternator & ignition
systems.
- Ignition timing......................25°
BTDC
- Firing
order..........................1-3-2-4
- DC output............................10amps
- Power rating........................63kw
(85hp) @ 3300rpm
- Fuel consumption.................13-14 l/hr
(3 imp gph) @ 75% power
-
Fuel....................................AVGAS 100LL / Mogas 95 RON (with
inspector sign-off)
- Oil......................................Aeroshell
W100 or 15W50 multigrade aviation oil.
- Oil capacity..........................2.3l
with oil cooler(2.2 Quarts)
- Spark Plugs..........................NGK
D9EA - Automotive

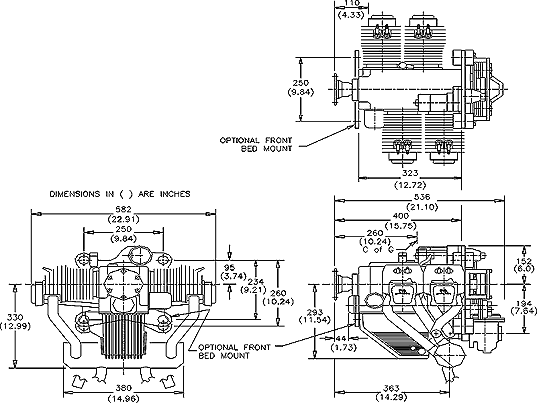

Drawing with dimensions (click on drawing to enlarge)
Download Brochure in pdf format
|
