There are two instrument panels being the J160 and J400 or four seat panel.

When doing your lay out of the instrument panel – note that the bottom cut out areas are usually where the fuses and toggle switches sit together with choke and carb heat. You will see that we have tried to give you the common instruments that customers have fitted to their aircraft. Also note we have tried to get instrument and panel size scaled correctly but please use this layout as an indication only. When all else fails take a look at the instrument panels below to see basic layout.

Flight Instruments - Standard supply
Airspeed indicator
Vertical Speed Indicator
Altimeter
Radio
Icom A200 or Microair
Engine Instruments
RPM with hobbs
Oil Temperature Gauge
Oil Pressure Gauge
Dual Exhaust Gas Temperature Gauge
Dual Cylinder Head Temperature gauge
Others
Carb Heat
Choke
Ignition Switch
Fuses
Toggle switches

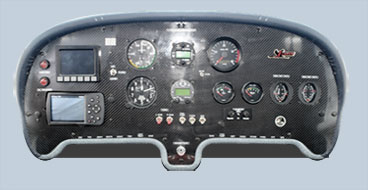

J160 INSTRUMENT PANEL

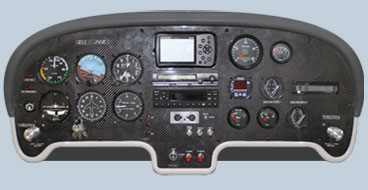

J400 INSTRUMENT PANEL
